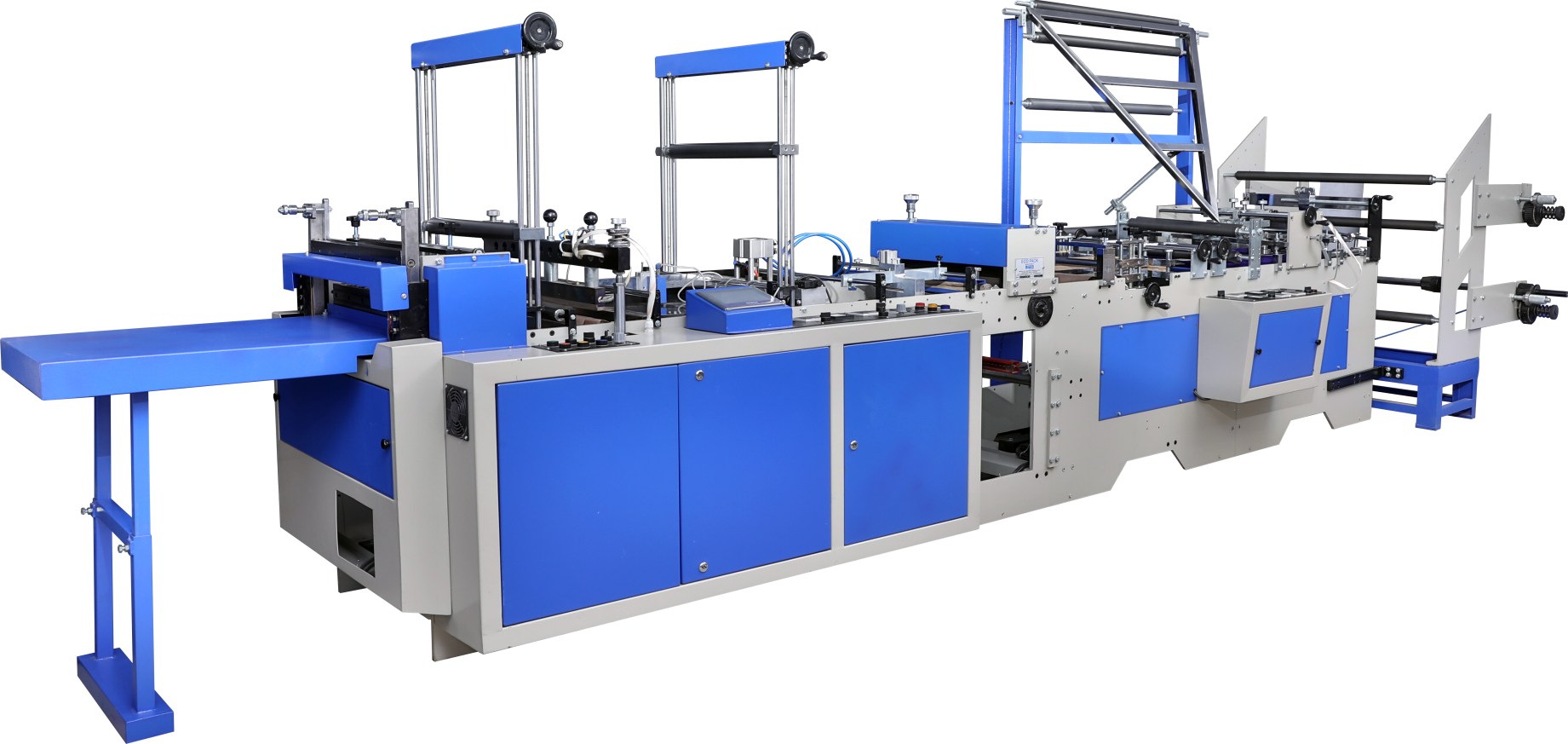

Center Seal & Three Side Seal

Salient Features

Powder Coated Machines having solid structure for long term operation.
Machine is operated by Imported Servo System for high speed and accuracy.
Use of Imported PLC and MMI. Size and count set digitally on MMI.
Mark sense alarm and cut off system reduces wastage if variation in printing.
High speed, Over load, Low Voltage alarm and cut off system.
An isolation transform is provided for Servo System.
User friendly Center Sealing System.
Horizontal Mounting of Three Side Seal Roll helps to handle heavy roll easily.
Total Three Unwind Stands enable to run TWO rolls for Three Side Seal.
Side Gusset for Center Seal as standard attachment.
Separate Temperature Controller for Center Seal and Three Side Seal.
Speed up to 200bags/min.
AC Drives for Main and Unwind.
Five Side Seal.

Optional Attachment

Incense Stick Sealer with Perforation with Auto Cut
On Line D Punch, Handle Punch, Hanger Punch and V notch

Specifications

* Speed depends on size, thickness & type of material

Specifications

Model	CSPT 550
Max. Flat Fikm width	950 MM
Min. Finished Piuch width	475 MM
Max. Pouch Length	1500 MM
Servo System S	Imported
PLC & MMI	Imported
A C Motors	Imported
Total Connected Load	8 HP
Production Speed*	Up to 200 pouch/min
Machine Dimension (LxWxH, mm)	6100 x 1350 x 1800

Watch Video Here
